This report documents the first stage of Cardano's reward pipeline — the epoch-level reward budget — and traces the structural forces that shape that budget before any individual pool receives a single lovelace. It builds on the empirical baseline established in the Analysis of Cardano's Incentive Mechanism (Lopez de Lara, 2025; hereafter the Incentive Mechanism Analysis).

Every epoch, the protocol assembles a reward pot from three on-chain sources — monetary expansion, transaction fees, deposits — then splits it between the treasury (20%) and the pools pot (80%). At epoch 623, the gross pot stood at ~19.23M ADA, the pools pot at 15.39M ADA — but only 6.78M ADA ultimately reached operators and delegators. This report asks where the rest goes, why the pot decays as it does, and whether the budget layer is sustainable on the timeline the rest of the pipeline assumes.

The companion The Pools Pot Distribution Gaps takes the pools pot from this stage and analyses the pool-level reward curve that distributes it. Where this stage sets the ceiling, that one allocates within it.

The epoch pot is a single-source budget. The SL-D1 formula admits three inputs (fees, deposits, reserve expansion), but mainnet behaviour collapses to one: monetary expansion supplies ~99.8% of the gross pot in essentially every epoch since Shelley. Transaction fees contribute ~0.17% at epoch 623 and have never crossed 3% outside a single recent anomaly. Even at full realistic network capacity (~3.1 TPS, ~1.34M tx/epoch), fee revenue would reach ~254K ADA/epoch — only ~1.3% of the reserve expansion term. Closing the fee gap requires fee revenue to grow by ~100× (two orders of magnitude) — combining a throughput upgrade (Leios), a structural shift in transaction demand, and higher per-tx pricing (no single lever suffices). SPOs assemble the pot reliably (block-production ratio η = 0.977 average since Shelley, with the cooperative-behaviour gate $\min(\eta, 1)$ activated in only 7 of 413 epochs) — the supply-side cooperation the formula nominally polices is not what constrains the budget.

The reserve has crossed its half-life. Stock has fallen from 13.29B → 6.45B ADA in ~5.7 years — a 51.43% depletion on an exponential schedule. Because the draw is a fixed 0.3% of whatever remains, the absolute pot shrinks even when participation does not. The nominal expansion has already halved (from ~39.9M to ~19.36M ADA/epoch). At current parameters, projected depletion forces significant reward pressure around epochs 1000–1200 (~2028–2029) and full depletion around ~epoch 3500 (~2040s). The decision window for parameter governance is measured in epochs, not decades.

The reward mechanism operates at ~44% of its potential. Of the 15.39M ADA allocated to the pools pot at epoch 623, only 6.78M (44%) reaches operators and delegators; the remaining ~8.61M returns to the reserve. Over 413 epochs, 4.61B ADA has flowed back this way — roughly 71% of the current reserve stock exists because rewards were not fully distributed. The dominant driver is upstream of the formula: ~16.8B ADA (~43.6%) of circulating supply does not participate in delegation, and the gap decomposition attributes ~70.9% of cumulative return-to-reserve to this non-participating capital. The buffer is a side-effect of incomplete distribution, not a design feature — any reform that improves distribution efficiency therefore accelerates depletion.

Reward parameters have never been adjusted. The two protocol parameters that govern this entire layer — the monetary expansion rate ($\rho = 0.3\%$) and the treasury rate ($\tau = 20\%$) — have remained at their day-one values for the full ~5.7 years of mainnet operation. Neither has been the subject of a formal governance proposal. The current pot, treasury inflow, and reserve trajectory all reflect parameter choices made for a network with very different supply, participation, and pool-count conditions — and the absence of any review path is itself a structural feature.

These four findings (TRE.O1–TRE.O4) are structural to the epoch-budget layer and fall outside the scope of the four CIPs under evaluation (CIP-0023, CIP-0037, CIP-0050, CIP-0082). They document the sustainability context within which all CIP proposals operate.

The remainder of the report walks the budget pipeline: the initial design presents the SL-D1 formula in three layers (original notation → reader-friendly rewrite → mainnet parameterization); the current snapshot instantiates it at epoch 623; the historical analysis decomposes pot composition, reserve trajectory, fee volatility, deposits, η, treasury inflow, return-to-reserve, and protocol parameters across epochs 208–623; the forward-looking section traces depletion, fee-to-expansion crossover, and upcoming events. All counts and amounts use the latest complete epoch with reward data (epoch 623, ending 2026/04/09) unless stated otherwise; source dataset data/reward_epoch_pools_mainnet.csv (Koios).

Table of Contents

1. Mainnet Observations

2. The initial design

The epoch-pot assembly and treasury/pools split analysed in this report were specified in Design Specification for Delegation and Incentives in Cardano (Kant, Brünjes & Coutts, IOHK, 2019 — deliverable SL-D1). The mechanism has been operational on mainnet since the Shelley hard fork on 2020/07/29 and its governing parameters ($\rho$, $\tau$) have never been modified since.

This section presents the formula in three layers — the original SL-D1 notation, a reader-friendly rewrite, and the mainnet-parameterized form — then identifies the two design choices that matter most for the empirical analysis that follows.

2.1. Formulas

2.1.1. SL-D1 (Original)

The design spec defines the gross epoch pot — the total ADA entering the reward pipeline each epoch:

$$ Pot^{\text{epoch}} := F + D + \min(\eta,1)\,\rho\,(T_{\infty}-T) $$

Then, the treasury/pools split — a single parameter $\tau$ determines how the pot is divided:

$$ R := (1-\tau)\,Pot^{\text{epoch}} $$

$$ TreasuryPot^{\text{epoch}} := \tau\,Pot^{\text{epoch}} $$

Reading note. $F$ = transaction fees, $D$ = non-refundable deposits, $\eta$ = block-production ratio ($Blocks_{\text{produced}}/Blocks_{\text{expected}}$), $\rho$ = monetary expansion rate, $(T_{\infty}-T)$ = remaining reserve. The full mapping to reader-friendly names is in the glossary (Concept glossary).

2.1.2. Reader-friendly epoch pot formula

Same logic, with self-documenting names. The epoch pot aggregates three inputs — fees, deposits, and a reserve draw gated by the block-production ratio:

$$ Pot^{\text{epoch}} = Fee^{\text{epoch}}_{\text{tx}} + Deposit^{\text{epoch}}_{\text{nonRefundable}} + \min\left(\frac{Blocks^{\text{epoch}}_{\text{produced}}}{Blocks^{\text{epoch}}_{\text{expected}}},1\right)\rho^{\text{monetaryExpansion}}_{\text{rate}}\left(Supply^{\text{system}}_{\text{total}}-Supply^{\text{system}}_{\text{circulating}}\right) $$

The split is then purely multiplicative — no pool-level logic is involved:

$$ PoolsPot^{\text{epoch}} := (1-\tau^{\text{treasury}}_{\text{rate}})\,Pot^{\text{epoch}} $$

$$ TreasuryPot^{\text{epoch}} := \tau^{\text{treasury}}_{\text{rate}}\,Pot^{\text{epoch}} $$

Conservation — the split is exhaustive, nothing is lost:

$$ PoolsPot^{\text{epoch}} + TreasuryPot^{\text{epoch}} = Pot^{\text{epoch}} $$

2.1.3. Mainnet parameterization

Substituting the current mainnet protocol parameters ($\rho = 0.3\%$, $\tau = 20\%$, 21,600 expected blocks per epoch, 45 billion max supply):

$$ Pot^{\text{epoch}} = Fee^{\text{epoch}}_{\text{tx}} + Deposit^{\text{epoch}}_{\text{nonRefundable}} + \min\left(\frac{Blocks^{\text{epoch}}_{\text{produced}}}{21{,}600},1\right)\cdot 0.3\% \cdot \left(45\,\text{billion} - Supply^{\text{system}}_{\text{circulating}}\right) $$

$$ PoolsPot^{\text{epoch}} := 80\% \cdot Pot^{\text{epoch}} $$

$$ TreasuryPot^{\text{epoch}} := 20\% \cdot Pot^{\text{epoch}} $$

At epoch 623, this produces:

2.1.4. Concept glossary

2.2. Design choices

Two design choices embedded at this stage matter for the rest of the analysis:

• Cooperative-behavior gate. The monetary expansion draw is scaled by $\min(\eta, 1)$ — the ratio of blocks actually produced to blocks expected. If pools collectively miss slots, the entire epoch pot shrinks. This discourages sabotage but also means the pot depends on aggregate network health. On mainnet, $\eta$ has averaged 0.977 since Shelley — the gate is satisfied but never binding (see §4.5 — Block-production ratio (η)).

• Fixed split rule. The treasury/pools ratio is a protocol constant ($\tau$), not a function of network activity or reserve level. It does not adapt as the balance between fees and expansion shifts over time. Both $\rho$ and $\tau$ have been unchanged since Shelley (see §4.8 — Protocol parameters).

A third property is structural rather than a parameter choice:

• Single-source dominance. Although the formula admits three inputs, monetary expansion accounts for ~99.8% of the epoch pot on mainnet (see §4.1 — Epoch pot composition). The pot's trajectory is therefore determined almost entirely by the reserve stock and $\rho$. Transaction fees and deposits are second-order corrections — a condition that will only change when fee revenue grows by at least an order of magnitude (Fee-to-expansion crossover).

2.3. Downstream: where the pools pot goes next

The pools pot ($PoolsPot^{\text{epoch}}$) produced by this stage is the total budget entering the pool-level reward formula. That formula — specified in the same SL-D1 document — distributes the budget across individual pools based on their stake, pledge, and block performance. Any rewards not distributed return to the reserve.

The companion report The Pools Pot Distribution Gaps analyses the pool-distribution stage in full, including the SL-D1 reward curve, its normalized rewrite, and the efficiency and behavioural analysis of mainnet outcomes.

At epoch 623, of the 15.39M ADA entering the pool-distribution stage, only 6.78M ADA (44.0%) was distributed to operators and delegators. The rest returned to the reserve — primarily because ~43.6% of circulating ADA does not participate in delegation. This return-to-reserve mechanism is analysed in §4.7 — Return to reserve and its implications for reserve sustainability in Reserve depletion trajectory.

3. Current snapshot

Reference epoch: 623 (2026/04/04 – 2026/04/09), latest complete epoch with reward data. The formulas in §2 produce the values below.

4. Historical

4.1. Epoch pot composition

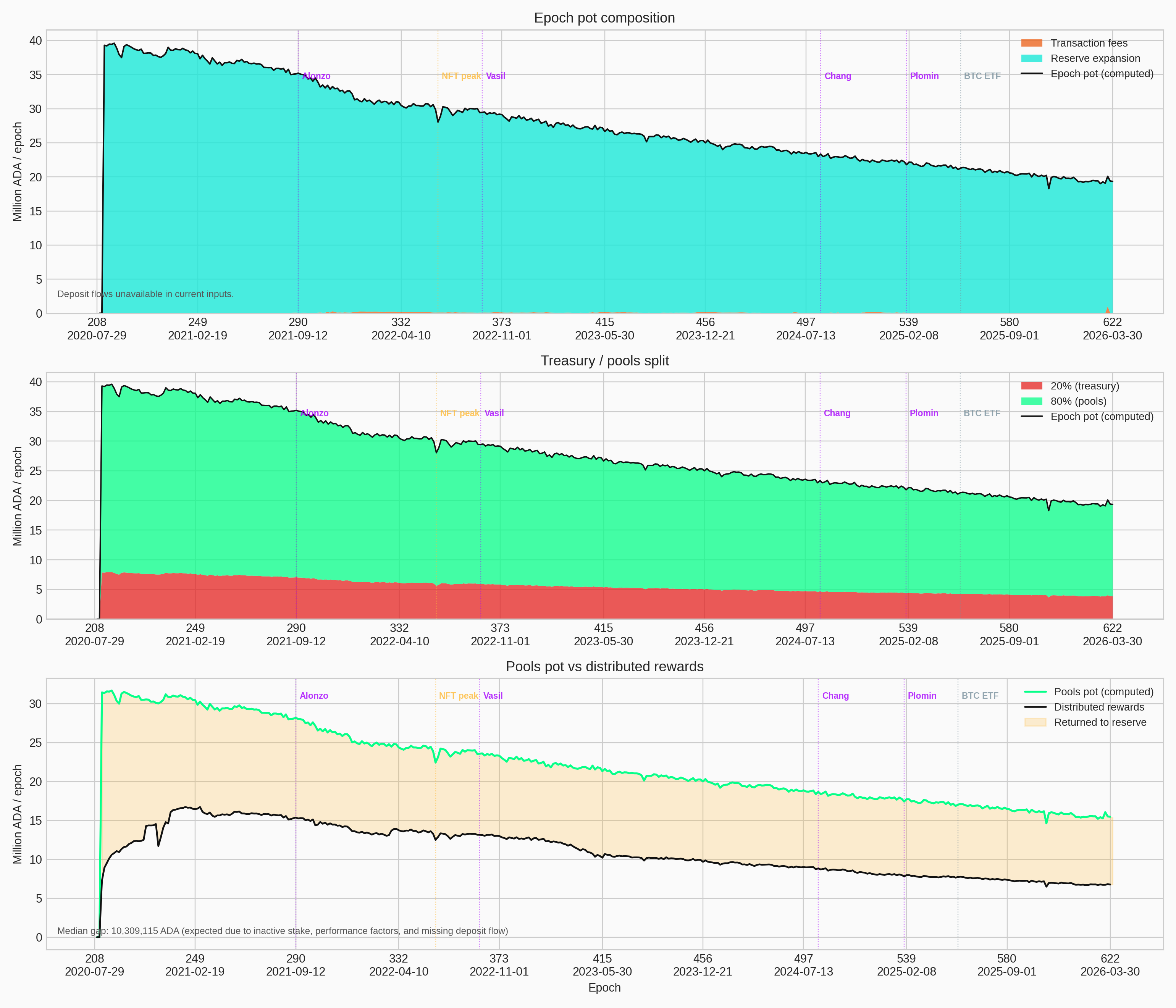

The top panel decomposes the gross epoch pot into its two measurable sources — reserve-sourced monetary expansion and transaction fees — since Shelley (epoch 208). Monetary expansion has dominated in every single epoch; outside the epoch 620 anomaly (see Transaction fees), fees have never exceeded 3% of the pot, even during peak activity (epoch 304, ~308K ADA).

From Observation TRE.O1 — The epoch pot rests on a single source — and that source has crossed its half-life

Finding#1 → Monetary expansion is the only material input to the epoch pot. Reserve-sourced expansion supplies ~99.8% of the gross pot in essentially every epoch since Shelley; fees and deposits sit at the noise floor. The pot's trajectory is therefore tied almost entirely to reserve stock and $\rho$ — the formula admits three sources, but the mechanism behaves as if it had one. This single-source dependence makes reserve depletion the binding constraint on every downstream layer.

The middle panel shows the resulting treasury / pools split ($\tau = 20\%$). Both tracks decline in parallel, reflecting the shrinking reserve.

The bottom panel compares the pool-side pot proxy to observed paid rewards. The persistent gap (~10.3M ADA/epoch median) represents rewards that were not distributed and returned to the reserve — see §4.7 — Return to reserve.

4.2. Reserve stock and monetary expansion

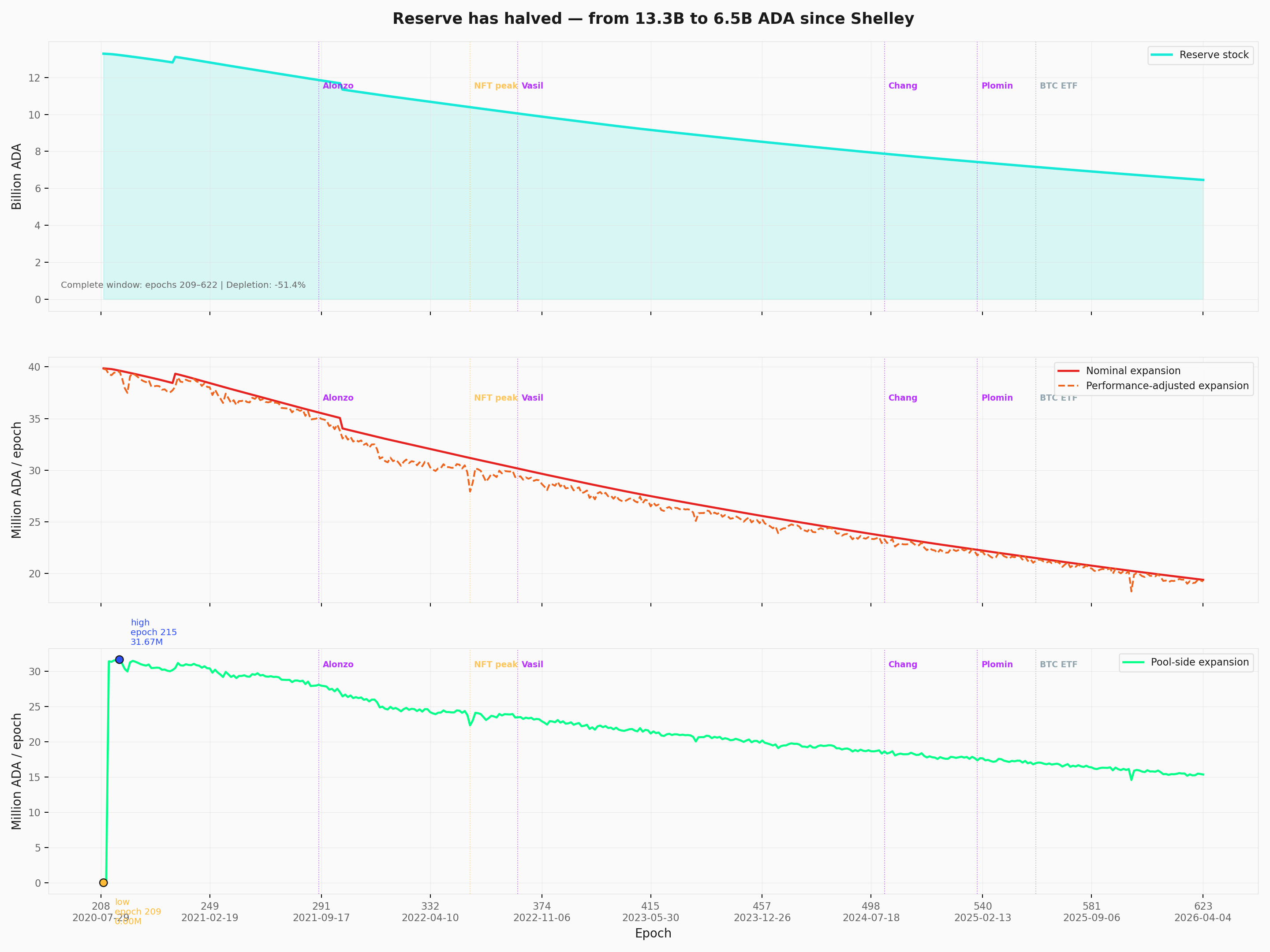

Reserve stock (top panel). The reserve has fallen from 13.29B ADA (epoch 209) to 6.46B ADA (epoch 622) — a decline of −51.35% over ~5.7 years.

Nominal draw (middle panel). The nominal monetary expansion ($\rho \times \text{Reserve}$) has decreased from ~39.9M ADA/epoch to ~19.39M ADA/epoch, tracking the reserve decline mechanically.

Pool-side contribution (bottom panel). After applying the treasury cut, decentralisation gate $g(d)$, and block-production ratio, the pool-side reserve term peaked at 31.7M ADA/epoch (epoch 215, 2020/09/02) and currently sits at ~15.43M ADA/epoch.

The declining trajectory is structural: each epoch draws from a smaller reserve, producing a smaller pot. The monetary expansion rate $\rho = 0.3\%$ has remained constant since Shelley.

From Observation TRE.O2 — The reserve has crossed its half-life — the budget is on an exponential decay schedule

Finding#1 → The reserve has crossed its half-life in 5.7 years of Shelley operation. Stock has fallen from 13.29B to 6.45B ADA — a −51.43% decline — and the nominal expansion has already halved from ~39.9M to ~19.36M ADA/epoch. Because the draw is a fixed 0.3% of whatever remains, the decay is exponential and the absolute pot shrinks even when participation does not. The single-source budget identified in TRE.O1 is now visibly thinning, on a schedule the formula cannot reverse.

4.3. Transaction fees

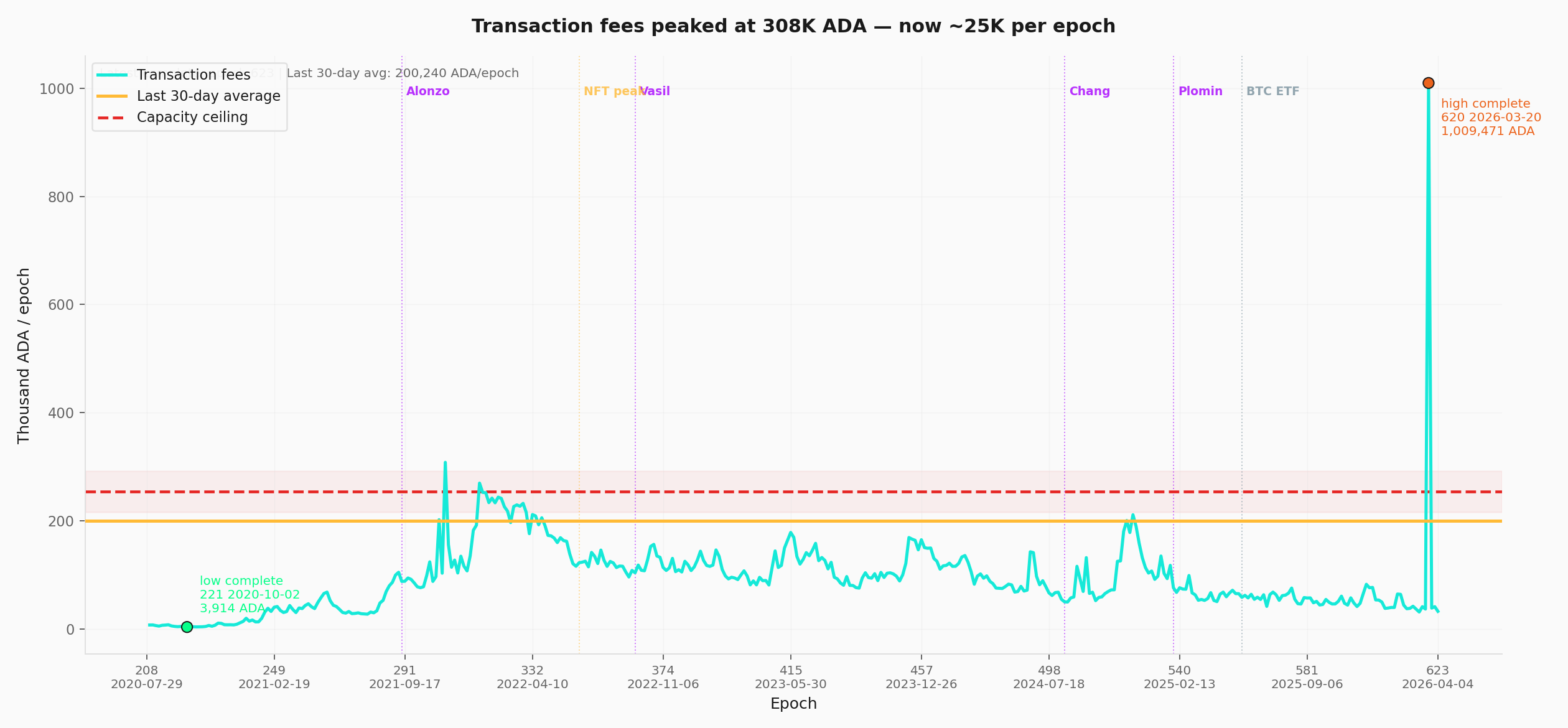

Fee revenue is volatile and tracks network activity spikes (NFT minting, DeFi waves), but the structural baseline sits around 30–50K ADA/epoch.

Epoch 620 anomaly. Epoch 620 recorded 1.01M ADA in fees — a ~30× jump over the surrounding baseline, with normal block production (21,180 blocks, η = 0.981). This single epoch pulls the rolling 30-day average from ~32K ADA/epoch to the 200K figure above and displaces the prior all-time maximum (epoch 304, 308K ADA). The driver is upstream — large-transaction-volume event or governance-scale activity — and warrants follow-up in the next analysis pass. Downstream pot and return-to-reserve figures are not materially affected, since fees remain <1% of the pot even at this level.

The realistic capacity ceiling (red dashed line on the visual) estimates the maximum fee revenue if the network operated at full realistic throughput: ~254K ADA/epoch (3.1 TPS × 432,000 s × 0.19 ADA avg fee).

Even at this theoretical maximum, fees would cover only ~1.3% of the reserve expansion term (19.23M ADA at epoch 623). The epoch 620 anomaly briefly exceeded this ceiling during exceptional activity.

The Analysis of Cardano's Incentive Mechanism (Lopez de Lara, 2025; hereafter the Incentive Mechanism Analysis, §5.1 — Reserve depletion trajectory) estimates the network would need to process 12–16× more transactions than its current realistic maximum capacity to fund rewards through fees alone — requiring both a throughput upgrade (Leios) and a fundamental shift in network utilization.

In fee-revenue terms, that target translates to a ~100× increase (two orders of magnitude) over today's ~32 K ADA/epoch — because the throughput multiplier alone, at current per-tx pricing, would only carry fees to ~15–20% of the pot. Closing the rest of the gap requires tiered or congestion-based pricing alongside the throughput shift.

From Observation TRE.O1 — The epoch pot rests on a single source — and that source has crossed its half-life

Finding#2 → Fee revenue is structurally insufficient to fund the pot, even at full capacity. At epoch 623 fees contribute ~0.17% of the gross pot, and even the realistic capacity ceiling of ~254K ADA/epoch (3.1 TPS × 432,000 s × 0.19 ADA) covers only ~1.3% of the reserve expansion term. Closing the gap requires fee revenue to grow by ~100× (two orders of magnitude) — a step change combining higher throughput (Leios), structurally higher transaction demand, and higher per-tx pricing (no single lever suffices, see §5.2 — Fee-to-expansion crossover). Until that crossover, the second source named in the SL-D1 formula is a rounding error.

4.4. Deposit obligations

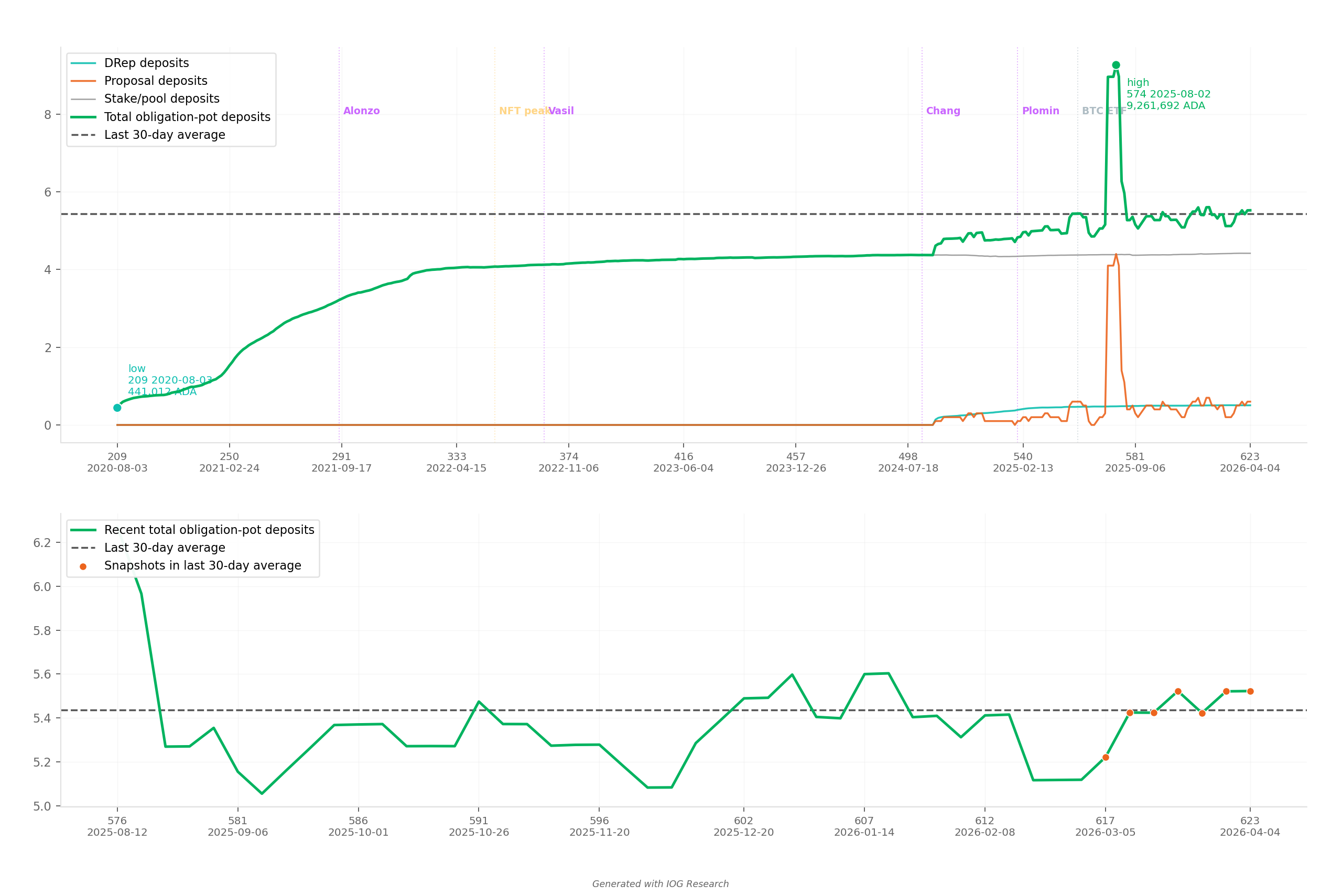

The deposit obligation (stake key, DRep, proposal deposits) is tracked as a stock-level proxy because the true epoch-level non-refundable deposit flow ($Deposit^{\text{epoch}}_{\text{nonRefundable}}$) is not directly available in the Koios dataset. The actual per-epoch contribution to the epoch pot is likely small and irregular.

The general_reward_pot proxy omits deposits entirely, and the resulting median verification gap (~49K ADA against treasury stock deltas) suggests this omission is acceptable for analysis purposes.

From Observation TRE.O1 — The epoch pot rests on a single source — and that source has crossed its half-life

Finding#3 → The deposit channel is small and unmeasurable at epoch granularity. Koios exposes a stock-level obligation series (~5.44M ADA average, max 9.26M ADA at epoch 574) but not the per-epoch non-refundable flow that actually enters the pot. Cross-validation against treasury stock deltas leaves a median gap of only ~49K ADA over epochs 211–623 — a rounding error against a pot of ~19M ADA. The third source in the SL-D1 formula is real on the balance sheet but invisible in the budget.

4.5. Block-production ratio (η)

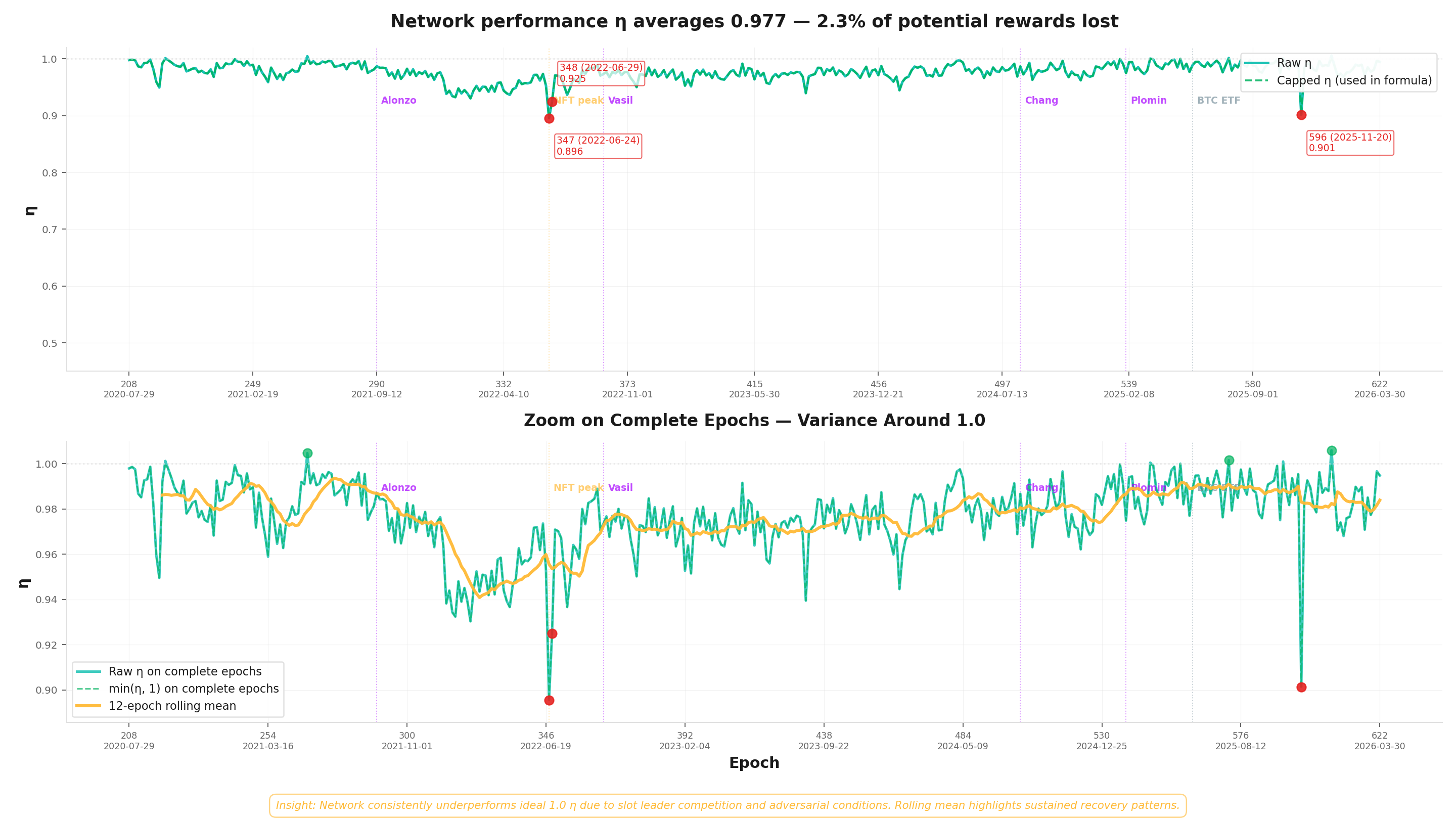

The block-production ratio $\eta = \frac{\text{Blocks produced}}{\text{Blocks expected}}$ acts as the cooperative-behavior gate in the epoch pot formula: $\min(\eta, 1)$ scales the monetary expansion draw.

The network has consistently filled ~97% of available slots since Shelley. The $\min(\eta, 1)$ clamp has been activated in only 7 epochs. The cooperative incentive is satisfied but never binding.

Even at the lowest observed η (0.896, epoch 347 — infrastructure stress), the impact on the epoch pot was a ~10% reduction, not a system-level event.

From Observation TRE.O1 — The epoch pot rests on a single source — and that source has crossed its half-life

Finding#4 → Stake pool operators assemble the pot reliably; block production is not the bottleneck. The cooperative-behaviour gate $\min(\eta, 1)$ has averaged 0.977 since Shelley and dropped only as low as 0.896 during a single infrastructure stress event (epoch 347). The clamp has activated in only 7 epochs out of 413. Whatever else constrains the budget, the supply-side cooperation that the formula nominally polices is not it — the gate is satisfied but never binding.

4.6. Treasury inflow decomposition

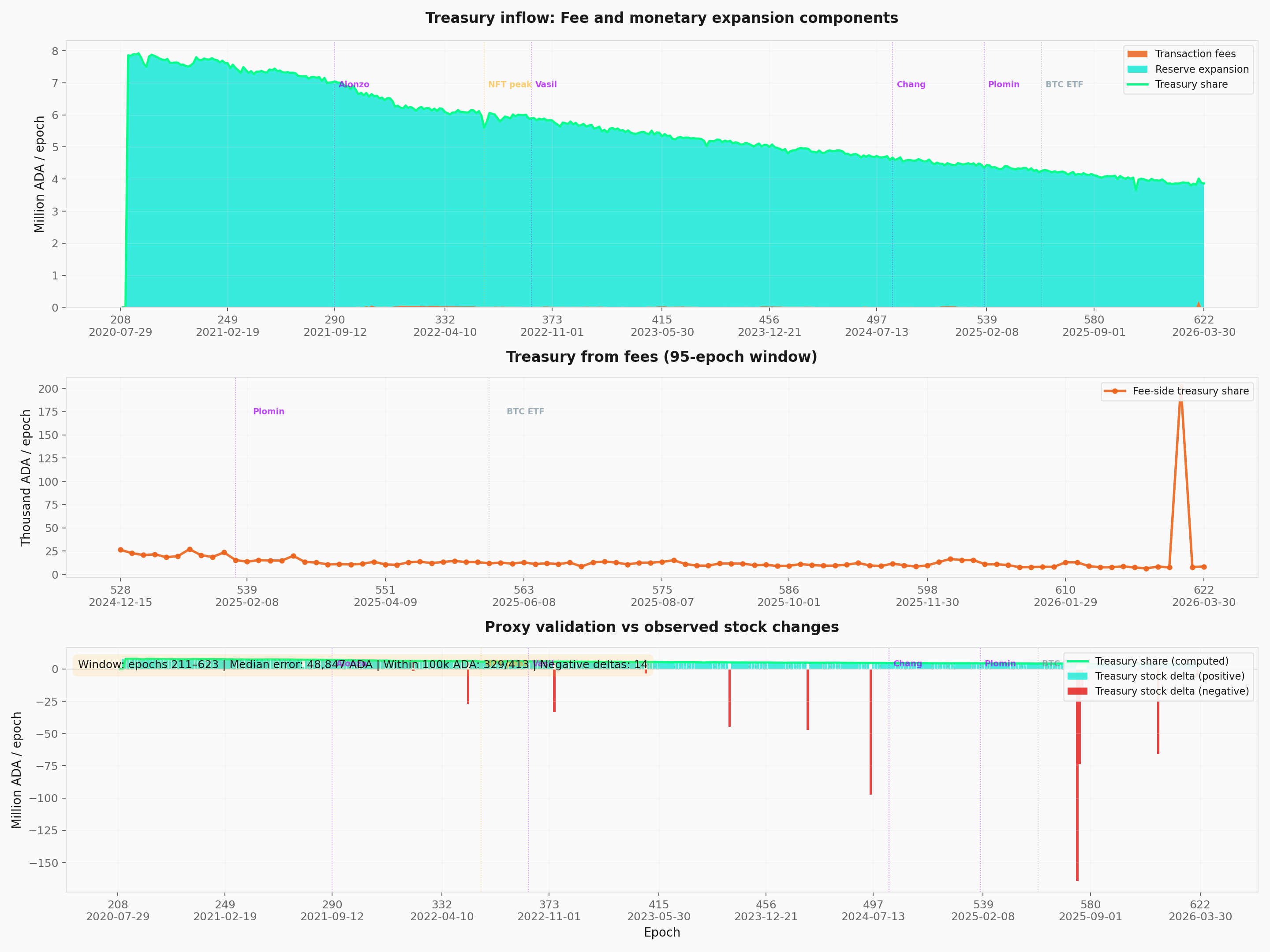

This visual decomposes the treasury inflow into its two observable components: the fee-side cut ($\tau \times Fee^{\text{epoch}}_{\text{tx}}$) and the reserve-side cut ($\tau \times g(d)\,\min(\eta,1)\,\rho \times \text{Reserve}$).

The top panel shows total treasury inflow since Shelley — the declining slope mirrors the reserve depletion. The middle panel zooms on the fee-side contribution in recent epochs. The bottom panel verifies the proxy against observed treasury stock deltas.

Verification. On epochs 211–623, the median absolute gap between the proxy and observed treasury stock delta is 48,846 ADA. 329 out of 413 epochs fall within 100K ADA. The 14 epochs with negative stock deltas correspond to treasury outflows (governance disbursements).

4.7. Return to reserve

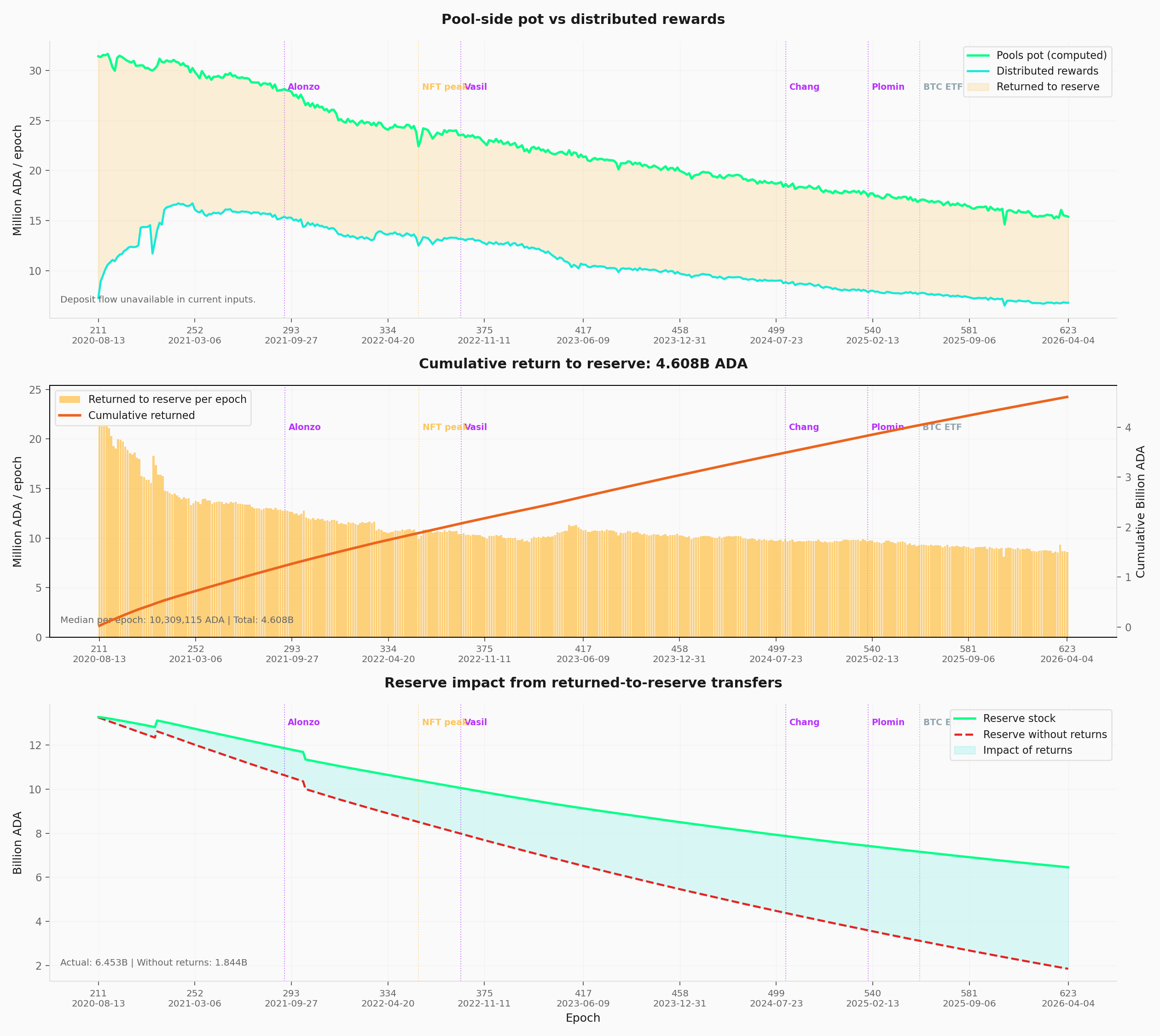

Not all of the pool-side pot is distributed as rewards. The difference between the pool-side pot proxy and observed paid rewards returns to the reserve — a mechanism that significantly slows reserve depletion.

From Observation TRE.O3 — Less than half of the pools pot reaches operators and delegators — the rest props up the reserve as a side effect of low participation

Finding#1 → Less than half of the pools pot reaches its intended recipients. Of the 15.39M ADA allocated to the pool side at epoch 623, only 6.78M ADA (~44%) is distributed to operators and delegators; the remaining ~8.61M returns to the reserve. The mechanism therefore operates at less than half of its design throughput in steady state — the SL-D1 distribution rules are intact, but the pool-by-pool conditions for full payout are not met across most of the landscape.

Reserve impact. At epoch 623, the actual reserve stood at 6.45B ADA. Without the return-to-reserve mechanism, the counterfactual reserve would be only 1.84B ADA — meaning approximately 4.61B ADA (~71% of the current reserve) exists because rewards were not fully distributed.

From Observation TRE.O3 — Less than half of the pools pot reaches operators and delegators — the rest props up the reserve as a side effect of low participation

Finding#2 → Cumulative undistributed rewards account for roughly three quarters of the current reserve stock. Over 413 epochs the return-to-reserve channel has accumulated 4.61B ADA — about 71% of the 6.45B ADA the reserve holds today. This buffer is a side-effect of incomplete distribution, not a design feature: the reserve has lasted as long as it has largely because the system has been failing to pay out. Any reform that improves distribution efficiency therefore accelerates depletion.

The primary driver is inactive stake — the ~16.8B ADA not participating in consensus. The gap decomposition analysis attributes ~70.9% of the cumulative return to inactive/non-eligible stake.

From Observation TRE.O3 — Less than half of the pools pot reaches operators and delegators — the rest props up the reserve as a side effect of low participation

Finding#3 → Inactive stake is the dominant driver of the distribution gap. Out of ~38.55B ADA in circulation, only ~21.75B (~56.4%) participates in delegation; the remaining ~16.8B ADA (~43.6%) earns no rewards but still dilutes the per-ADA share. The decomposition attributes ~70.9% of cumulative return-to-reserve to this non-participating capital. The lever sits upstream of the formula — it is a participation problem, not a distribution-rule problem.

4.8. Protocol parameters

Three protocol parameters directly govern the epoch-pot assembly and treasury/pools split. All three have been constant since they reached their current value.

$\rho$ controls how much of the reserve is drawn each epoch. At 0.3%, the current draw is ~19.36M ADA/epoch. This rate has never been the subject of a governance proposal, despite the reserve crossing its half-life.

$\tau$ sets the treasury/pools split. At 20%, the treasury receives ~3.85M ADA/epoch and the pools pot receives ~15.39M ADA/epoch. This ratio has likewise never been reviewed.

From Observation TRE.O4 — The two parameters that govern this whole layer have never been adjusted

Finding#1 → The two parameters that govern this entire layer have never been adjusted since Shelley. Both the treasury rate ($\tau = 20\%$) and the monetary expansion rate ($\rho = 0.3\%$) have remained at their day-one values for the full ~5.7 years of mainnet operation. Neither has been the subject of a formal governance proposal. The current pot, treasury inflow, and reserve trajectory all reflect parameter choices made for a network with very different supply, participation, and pool-count conditions — and the absence of any review path is itself a structural feature.

$d$ affected the epoch pot during the Shelley-to-decentralisation transition through the gate function $g(d)$. It reached 0 at epoch 257 and has been inert since — included here only for completeness.

5. Forward-looking

5.1. Reserve depletion trajectory

The reserve has lost 51.43% of its initial value in ~5.7 years. The depletion is not linear — it follows an exponential decay driven by $\rho \times \text{Reserve}$, meaning each epoch draws a smaller absolute amount.

The Incentive Mechanism Analysis (Incentive Mechanism Analysis §4.3 / Figure 19) projects:

From Observation TRE.O2 — The reserve has crossed its half-life — the budget is on an exponential decay schedule

Finding#2 → Significant reward pressure is projected at epochs 1000–1200, roughly 2028–2029. At current parameters and participation, the reserve is forecast to fall to ~2B ADA within that window — the point at which per-epoch monetary expansion becomes too small to sustain today's nominal reward levels. Full depletion sits around epoch 3500 (~2040s), but the operational threshold arrives much earlier. The decision window for parameter governance is measured in epochs, not decades.

The return-to-reserve mechanism (§4.7 — Return to reserve) is currently extending the reserve's life by returning ~10.31M ADA/epoch. However, if inactive stake were to enter consensus (e.g. through governance incentives or exchange staking changes), this buffer would shrink, accelerating depletion.

5.2. Fee-to-expansion crossover

For the reward system to become self-sustaining, fees must eventually replace monetary expansion as the dominant input to the epoch pot.

Current gap. Fees represent ~0.19% of the epoch pot. Closing this gap requires a combination of:

No single lever is sufficient. The report recommends a multi-pronged approach: capacity expansion (Leios), tiered fee models (Kiayias et al., 2023), and ecosystem growth to drive transaction volume.

5.3. Upcoming events and risks

Leios upgrade. Designed to substantially increase network throughput. This is a necessary precondition for fee growth, but does not guarantee traffic. "Leios provides the highway — it does not guarantee the traffic" (Lopez de Lara, 2025, §5).

Governance activation of latent stake. If a significant portion of the ~16.8B ADA currently outside consensus enters staking — through governance incentives, exchange policy changes, or new delegation products — the return-to-reserve buffer shrinks, the pool-side pot gets distributed more fully, and reserve depletion accelerates.

This is a double-edged dynamic: more participation strengthens decentralization but increases sustainability pressure.

Parameter governance. The monetary expansion rate $\rho$ and treasury rate $\tau$ are currently fixed constants. The report recommends they be treated as dynamic parameters subject to periodic governance review.

A reduction in $\rho$ would slow reserve depletion but also reduce per-epoch rewards, affecting operator viability. A change in $\tau$ would shift the treasury/pools balance. Neither has been adjusted since Shelley.

6. Reproduction

6.1. Full rebuild

All figures and data summaries can be regenerated from the source dataset in a single pass:

cd scripts/
bash build_all.sh

Or individually:

cd scripts/
python3 build_general_reward_pot_visual.py        # → figures/general_reward_pot_mainnet.png + data/general_reward_pot_mainnet.md
python3 build_monetary_expansion_reserve_history.py # → figures/monetary_expansion_reserve_history_mainnet.png + data/*.md + data/*.csv
python3 build_fee_epoch_tx_history_visual.py       # → figures/fee_epoch_tx_history_mainnet.png + data/fee_epoch_tx_history_mainnet.md
python3 build_treasury_epoch_source_visual.py      # → figures/treasury_epoch_source_mainnet.png + data/treasury_epoch_source_mainnet.md
python3 build_deposit_obligation_history_visual.py # → figures/deposit_obligation_history_mainnet.png + data/deposit_obligation_history_mainnet.md
python3 build_return_to_reserve_impact_visual.py   # → figures/return_to_reserve_impact_mainnet.png + data/return_to_reserve_impact_mainnet.md
python3 build_eta_history_visual.py                # → figures/eta_history_mainnet.png + data/eta_history_mainnet.md

Requirements: Python 3.9+, matplotlib, numpy. No other dependencies.

Input data (self-contained in data/, no network required): - reward_epoch_pools_mainnet.csv — Koios epoch-level export (epochs 208–623): block counts, fees, reserves, treasury, deposits, stake levels, and reward parameters

Generated data summaries (produced by scripts, checked in for offline reference): - general_reward_pot_mainnet.md — gross pot proxy breakdown (expansion vs fees) - monetary_expansion_reserve_history_mainnet.md — reserve trajectory and draw mechanics - monetary_expansion_reserve_history_mainnet.csv — reserve history with nominal/adjusted draws - fee_epoch_tx_history_mainnet.md — fee volatility metrics and capacity ceiling estimates - treasury_epoch_source_mainnet.md — treasury decomposition and stock delta validation - deposit_obligation_history_mainnet.md — deposit obligation stock proxy - return_to_reserve_impact_mainnet.md — undistributed rewards and counterfactual reserve - eta_history_mainnet.md — block-production ratio statistics

Status — Built on 2026/04/21 from mainnet data at epoch 623 plus historical analysis from epoch 208 (Shelley inception).
